Introduction

Today, large-scale infrastructure projects—like highways, expressways, and bridges—have become extremely complex. These projects involve multiple activities running in parallel: land acquisition, design approvals, earthwork, pavement construction, drainage, safety installations, and final commissioning.

Managing all these tasks on a single timeline would be nearly impossible without a structured tool. This is where a Gantt Chart comes into play as a powerful planning and control tool.

A Gantt Chart is a visual timeline that represents all of a project’s tasks against time. This allows you to easily see when each task will start, when it will end, and which tasks depend on each other. Its importance is even greater in highway projects, where delays have a direct impact on costs and public convenience.

In this blog, we will explain in detail what a Gantt Chart is, how it works, and how to use it effectively in a highway project. We will also discuss 7 practical ways you can take your project management to the next level.

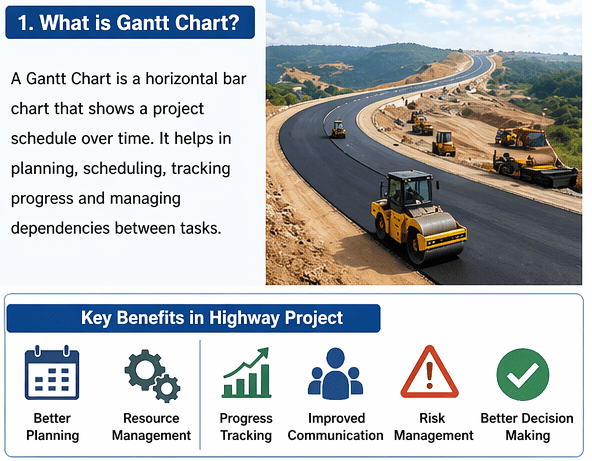

What is a Gantt chart?

A Gantt Chart is a project management tool that displays tasks as horizontal bars on a timeline. Each task has a start date and an end date, and a bar represents its duration.

The main purpose of this chart is to clearly visualize the project schedule. When planning a highway project, you need to know which tasks you will complete first and which you will complete later. For example, you can’t start pavement work without preparing the subgrade.

A Gantt Chart clearly shows this sequence. It also shows dependencies, allowing you to understand how delaying one activity will impact other activities.

If explained in simple language, a Gantt Chart serves as a “roadmap” that guides the project from start to end.

Understanding the Structure of a Gantt Chart

A Gantt Chart has two main axes. The horizontal axis represents time—in days, weeks, or months. The vertical axis lists the project’s tasks or activities.

Each activity appears as a horizontal bar. The length of the bar indicates how long the task will take. If a task depends on another task, arrows or links connect them.

Some common activities in a highway project may include: site clearing, earthwork, embankment construction, subgrade preparation, base course, bituminous layers, drainage works, and road furniture installation.

These are logically arranged in a Gantt Chart to create a smooth workflow.

Importance of Gantt Chart in Highway Project

Highway projects are usually long-term and involve multiple stakeholders—contractors, consultants, government agencies, and suppliers.

If proper scheduling is not in place, the project can easily delay. Delays mean cost overruns and penalties. The Gantt Chart solves this problem by providing clear visibility of the entire project.

This gives the project manager clarity at every stage about where the project stands and what corrective action needs to be taken.

Weather conditions also significantly affect highway projects. Monsoon can impact some activities, such as earthwork and bituminous work. The Gantt Chart considers these factors when planning the schedule.

To know How to prepare Subgrade bed and FDD checking, Click on given Link

How to prepare the subgrade bed: complete process

FDD test: what is it? complete process and calculation.

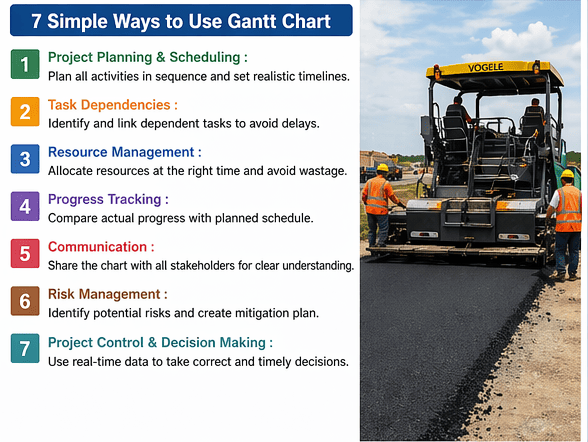

7 Simple Ways to Use Gantt Chart

Project planning and scheduling

The most basic and important use of a Gantt Chart is in project planning. When you start a highway project, the first thing you need to do is identify all the tasks.

n the planning phase, you break the project into smaller activities. For example, you might divide a highway project into sections—earthwork, pavement, drainage, structures, etc.

You estimate the duration for each activity and arrange it in a logical sequence. A Gantt Chart converts this entire plan into a visual format. This gives you a clear roadmap that you can follow in the execution phase.

Understanding Task Dependencies

In highway construction, many activities depend on each other. For example, subgrade work can only begin after the embankment is complete.

It clearly show dependencies, allowing you to understand which tasks are critical and which are flexible.

Delays in a critical task can delay the entire project. Therefore, understanding and managing dependencies is crucial.

Gantt charts make this simple because you can see the entire sequence at a glance.

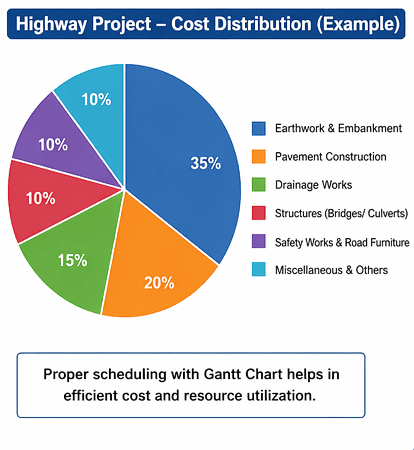

Resource Management

Efficient use of resources is crucial for highway projects. Resources include labor, machinery, and materials.

A Gantt chart shows you which resources you will need at which time. For example, you will need excavators and dumpers during excavation, while you will need pavers and rollers during paving.

If planning is not accurate, resources may become idle or scarce. Both situations are detrimental to the project.

It helps you optimize resource allocation.

To know better about project life cycle, Click on given Link

5 Phases of Project Life Cycle (Easy Guide)

Progress Tracking

You can compare actual progress with the planned schedule. If any activity is lagging behind schedule, you can take immediate corrective action.

Daily or weekly progress monitoring is very important in highway projects. A Gantt Chart makes this process easy and visual. This gives the project manager a real-time understanding of the project’s progress.

To improve communication

Large highway projects involve multiple teams. Each team has its own role and needs to be aware of each other’s work.

A Gantt Chart provides a common communication tool. It gives all stakeholders a clear overview of the project.

Presenting a Gantt Chart during meetings can easily explain the current status of the project and the next steps. This reduces misunderstandings and improves coordination.

Risk Management

Every project has risks, and highway projects have even more risks—weather issues, material delays, labor shortages, etc. A Gantt chart allows you to identify potential risks.

If an activity is critical and at risk of delay, you can create a backup plan in advance. This can minimize project delays and improve overall efficiency.

Project control and decision making

The Gantt Chart is a powerful tool for project control. It enables the project manager to make timely decisions.

If the project deviates from schedule, the Gantt Chart helps identify where the problem lies and what the solution might be.

Timely decision-making is crucial in highway projects because delays have a significant impact.

The Gantt Chart provides a data-driven approach that ensures accurate and effective decision-making.

Real-Life Example

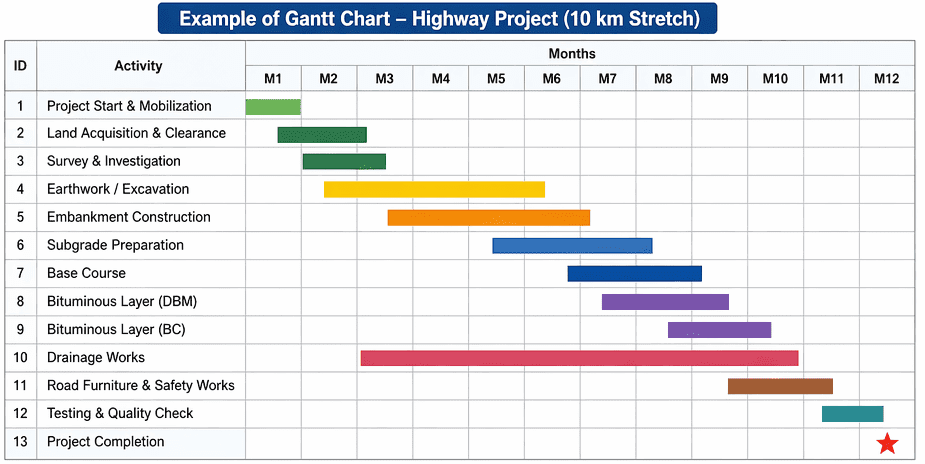

Suppose you are constructing a 10 km highway stretch.

First, you will perform land clearance and site preparation. This will be followed by earthwork and embankment construction. Then, you will work on the subgrade, base course, and bituminous layers.

If you use a Gantt Chart, you can easily plan when each task will start and when you will complete it.

If earthwork is delayed for some reason, you can immediately see the impact it will have on subsequent tasks and adjust the plan accordingly.

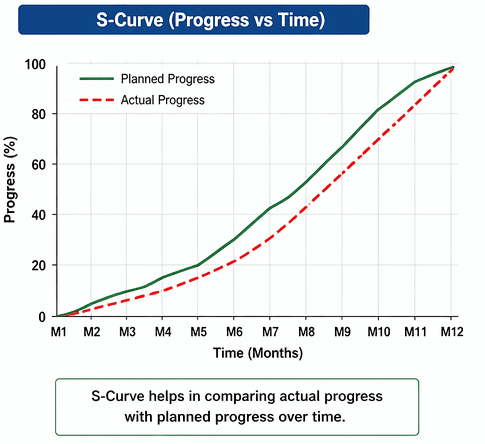

S curve also helps to find planned and achieved financial progress

To know better idea about Highway, Click on given Link

How to Study Typical Cross Section – Complete Guide

how to select Borrow Area: Complete Guide for Engineers

Advantages of Gantt Chart

• Gantt Charts make projects simple and understandable. It helps to make planning, scheduling, and tracking easier.
• It’s a visual tool that even non-technical stakeholders can easily understand.
• Using it on highway projects can significantly reduce delays and cost overruns.

Conclusion

A Gantt Chart serves as an essential tool that helps efficiently manage any project, especially large-scale highway projects.

It enables you to plan, monitor, and control the project.

Whether you are a civil engineer or project manager, proper use of a Gantt Chart is a very valuable skill for your career.

If you use it correctly, this tool significantly increases the chances of project success.
