Introduction:

Typical Cross Section (TCS) is a very important drawing in civil engineering, especially in Highway engineering. Whether you’re a site engineer, student, or quantity surveyor, knowing how to read a TCS correctly is essential.

In this guide, we will explain step-by-step what a TCS is, how to read it, and how someone uses it on a practical site.

what is typical cross section (Tcs):

A drawing that shows a side view (cut section) of a road or structure is a typical cross-section.

It provides details of the road’s full width, layers, slope, drainage, and structures.

In simple terms: A TCS represents a cut-section of the road and we view it from the side.

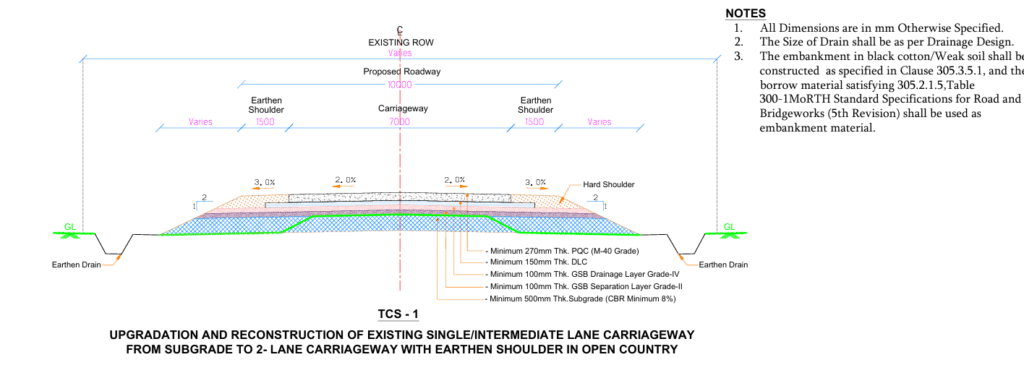

Lets understand The given TCS-1:

• Main Carriage way (MCW) = 7 m
• Earthen shoulder = 1.5 m each side
• Camber percentage = 2% (Variable)
• Camber of Earthen shoulder = 3% (From edge of MCW)
• Slope = 1:2
• Required CBR (California Bearing Ratio) = 8% for Subgrade

Note: Read carefully the instruction given above drawing

• Subgrade Thickness = 500 mm
• GSB 1st layer (Separation Layer grade – II) = 100 mm
• GSB 2nd layer (Drainage Layer grade – IV) = 100 mm
• DLC = 150 mm
• PQC = 270 mm

Layer-wise Analysis of the Given TCS:

Subgrade Layer:

crust thickness = PQC + DLC + GSB = 270 + 150 + 100 + 100 =620 mm

Slope = 1:2

We know, Subgrade bottom = Embankment Top

Hence embankment top have to calculate.

crust thickness + Subgrade thickness = 620 + 500 = 1120 mm or 1.12 m

Embankment Top width half section = (MCW half section + side shoulder one side) + (Slope X thickness)

Top width = (3.5 + 1.5) + ( 2 X 1.12) =7.24 m

For Both side = 7.24 X 2 = 14.48 m

Similarly you can calculate Embankment 1st layer to Top layer Toe width by using the same formula but the thickness will vary.

Now,

Subgrade 1st layer Top width

crust thickness + Subgrade Top layer thickness(maximum 250 mm) = 620 + 250 = 870 mm or 0.870 m

Subgrade 1st layer half width = (3.5 + 1.5) + (2 X 0.870) = 6.74 m

Subgrade 1st layer Top width = 6.74 X 2 = 13.48 m

Here we got the Top width of 13.48 m, but the toe width for Subgrade 1st = 14.48 m(Embankment Top width)

Subgrade Top layer Top width

Top layer half width = (3.5 + 1.5) + (2 X 0.620) = 6.24 m

Subgrade Top layer full width = 6.24 X 2 = 12.48 m

Here we got the Top width of 13.48 m, but the toe width for Subgrade Top = 13.48 m(Embankment Top width)

Remember The top width of the Subgrade layer = Top width of Subgrade top layer = 12.48 m

The Toe of Subgrade layer = Bottom width of Subgrade layer/ Top width of embankment layer = 14.48 m

Analysis

Here,

• Top width of embankment Top layer = 14.48 m
• Top width of Subgrade 1st layer = 13.48 m
• Toe width of Subgrade 1st layer = 14.48 m
• Top width of Subgrade Top layer = 12.48 m
• Toe width of Subgrade 1st layer = 13.48 m

For better idea regarding Highway engineering click on below link.

what is Superelevation in road: complete guide

potholes in road: causes, damages and methods of repairing

What is camber : Complete Guide for Beginners

GSB (Granular Sub Base) Layer:

GSB 1st layer

(Crust thickness – GSB 1st layer thickness) = 620 – 100 = 520 mm or 0.520 mm

GSB 1st layer half width = (3.5 + 1.5) + (2 X 0.52) = 6.04 m

Full width = 6.04 x 2 = 12.08 m

Similarly, GSB Top layer

(Crust thickness – GSB 1st layer thickness – GSB Top Layer Thickness) = 620 – 100 – 100 = 420 mm or 0.420 m

GSB Top layer half width = (3.5 + 1.5) + (2 X 0.420) = 5.84 M.

Full width = 5.84 X 2 =11.68

Analysis

Here,

• Top width of GSB 1st layer = 12.08 m
• Toe width of GSB 1st later= 12.48 m
• Top width of GSB Top layer = 11.68 m
• Toe width of GSB Top later= 12.48 m

DLC (Dry Lean Concrete) Layer

As per given TCS,

DLC have no slope and having some offset.

So generally offsets are taken as per engineers. may be 0.250 or 0.300 m

Assume it is 0.250 mm

So DLC width = half width of MCW + 0.300 = 3.500 + 0.300 = 3.800

For Both side = 3.8 X 2 =7.6 m

PQC (Pavement Quality Concrete) Layer

As per given TCS,

PQC have no slope and having some offset.

So MCW width = PQC Top and Bottom width = 7 m (Bothside)

How TCS is used on site (Practical Understanding)

• When you work on site, the TCS is not just a drawing but becomes a complete execution guide. The site engineer first fixes the center line as per the TCS and then marks the required width on both sides.
• After this, the team completes the work layer by layer. First, the crew prepares the embankment, then they create the subgrade, then they lay GSB, DLC, and finally they install PQC.
• During each layer, the site team verifies the width, thickness, and slope as per the TCS. If they find a deviation at any stage, they must correct it immediately; otherwise, the entire structure may become weak.

Use of TCS in Quantity Calculation

• TCS is most commonly used in quantity surveys.
• The width and thickness of each layer determine the volume of earthwork, GSB, DLC, and PQC.
• For example, if someone knows the length and calculates the cross-sectional area, they can easily calculate the total volume.
• This is very important for both estimation and billing.

Common Mistakes Engineers Make

• Engineers often fail to interpret TCS correctly, leading to on-site mistakes.
• The most common mistake is ignoring slope. People simply look at the top width, even though the bottom width is greater.
• Second mistake is mistaking the thickness for loose thickness, when it is actually compacted thickness.
• Third mistake is not marking the offset correctly, resulting in inaccurate alignment.
• These small mistakes can damage the entire road structure.

Home Work:

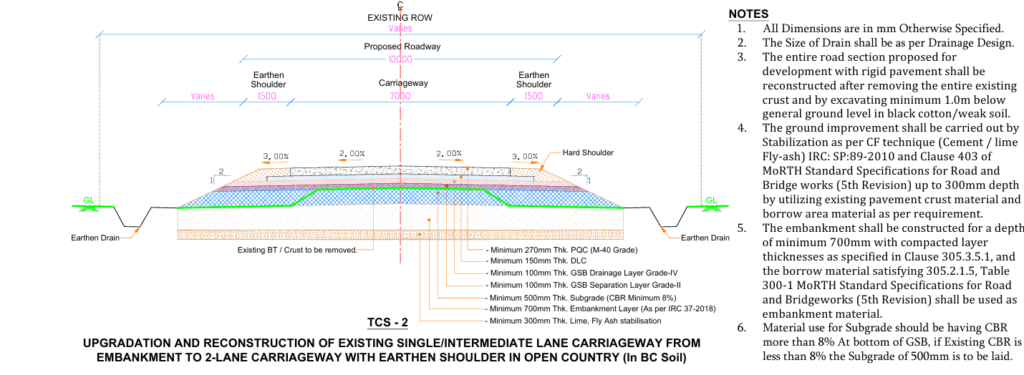

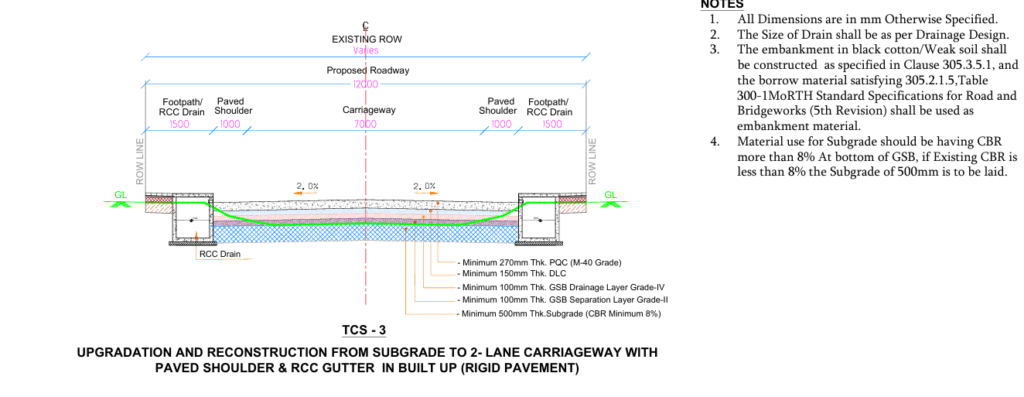

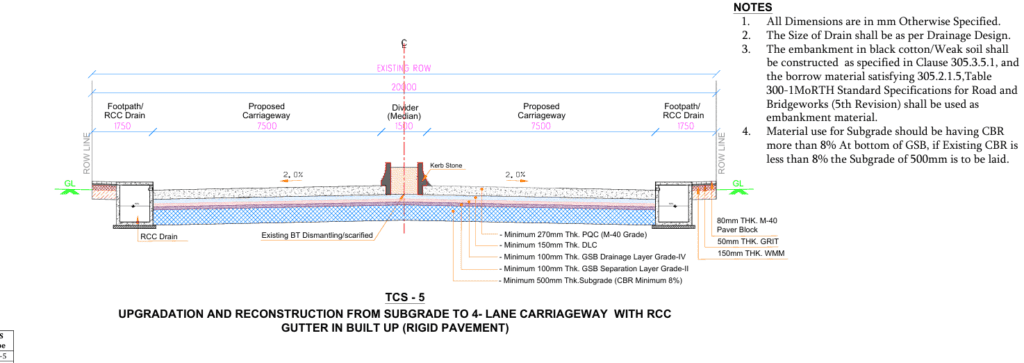

Comment if you solve these 3 tasks

Conclusion

The Typical Cross Section (TCS) is a crucial concept in civil and highway engineering, serving as the foundation for the planning, execution, and quality control of any road project. Correct interpretation of the TCS is essential for understanding the width, thickness, slope, camber, and structural arrangement of each layer during road construction. When an engineer accurately reads and analyzes the TCS, tasks such as site marking, level checking, layer construction, and quantity calculation become significantly easier.

In this article, we explored step-by-step how to read a Typical Cross Section drawing and understood the practical significance of the dimensions provided within it. We examined the width calculations for embankment, subgrade, GSB, DLC, and PQC layers in detail. We also looked at the significant impact that slope and layer thickness have on road geometry. During actual site execution, the TCS serves as a comprehensive guide for engineers, enabling every construction activity to be implemented in accordance with the design.

The TCS is also highly valuable from the perspective of quantity surveying and billing, as it forms the basis for calculating cross-sectional areas and material quantities. Therefore, whether you are a civil engineering student, a site engineer, a quality engineer, or a quantity surveyor, a solid understanding of the TCS strengthens your technical skills.

In conclusion, the TCS is not merely a drawing but a practical tool for the execution of road construction. The more you analyze and practice with various TCS drawings, the better you will be able to relate the design to field conditions and evolve into a competent civil engineering professional.
