Introduction

In highway engineering, a “median” is a very important component that physically separates traffic from two different directions on the road.

Proper design and maintenance of medians on high-speed corridors, expressways, and national highways has become a key factor in road safety.

Mediators are not just dividers; they support many engineering aspects, such as safety, drainage, lighting, and future widening.

In this article, we will understand the concept, types, design standards, IRC codes, construction practices, and real-life examples of medians in detail.

What is Highway Median?

A median is the central portion of a highway that separates traffic from opposite directions. This strip can be paved, unpaved, depressed, or raised.

In simple terms: Median = separation zone in the middle of the road.

The main purpose of a median:

• Separating opposite traffic
• Preventing head-on collisions
• Maintaining traffic discipline

Importance of Median

Medians are crucial on highways, especially on high-speed roads.

For Safety:

Medians significantly reduce head-on collisions. Roads without medians are more likely to have fatal accidents.

For Traffic Flow:

Medians maintain smooth traffic movement and reduce overtaking conflicts.

Glare Reduction:

Medians help reduce glare from opposite vehicle headlights during night driving.

Future Expansion:

Wide medians provide space for future widening.

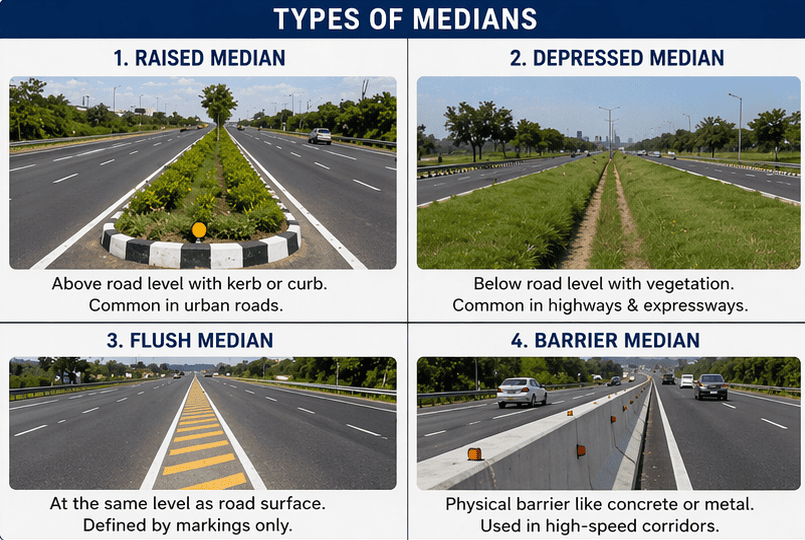

Types of Median

Highway medians divide into several types based on design and function:

Raised Median

This median raises above ground level, usually made of a concrete Kerb or stone Kerb.

• It is common on urban roads.
• It helps in pedestrian control.
• It is suitable for landscaping.

Depressed Median

This median is below road level and is planted with vegetation or grass.

• Used on highways and expressways
• Effective in glare reduction
• Useful for drainage

Flush Median

It is at the level of the road surface and is defined only by markings.

• Used on low-traffic roads
• Cost-effective
• Safety comparatively low

Barrier Median

It consists of a physical barrier, such as:

• Concrete barrier (New Jersey type)
• Metal crash barrier
• Used on high-speed corridors
• Provides maximum safety

Design Considerations of Highway Median

Several engineering factors must be considered when designing a median.

• Engineers analyze traffic volume and speed. High-speed roads require a wider, barrier-type median.
• Available land width also influences design. In urban areas, designers use narrow raised medians due to space constraints.
• Safety is the most important factor. The median should prevent vehicle crossover and reduce accident severity.
• Engineers must design a proper drainage system to prevent water accumulation.

Safety Benefits of Median

The biggest advantage of a median is safety improvement.

It prevents head-on collisions, which are the most fatal accidents. Additionally, the median acts as a glare screen, preventing the headlights of opposite traffic from disturbing the driver.

Barrier medians significantly reduce fatal accidents, especially on expressways.

Construction Process of Median

Median construction is a systematic process.

Site clearing and earthwork are performed first. This is followed by subgrade preparation.

In the case of a raised median, PCC (Plain Cement Concrete) or kerb construction is performed. This is followed by finishing, painting, and the installation of reflective markers.

Depressed medians require proper slope and grass turfing.

To get details about How to prepare Subgrade Bed, click on given link.

How to prepare the subgrade bed

To read more about highway , click on given link.

What is Gradient: in Civil Engineering?

How to Study Typical Cross Section

Median Design Standards (as per IRC Codes)

The main guidelines for median design in India are provided by the Indian Roads Congress (IRC).

Important IRC Codes:

• IRC: 86-1983 – Geometric Design Standards for Urban Roads
• IRC: 73-1980 – Rural Highways Design
• IRC: SP:84 – Four Lane Highways Manual
• IRC: SP:87 – Six Lane Highways Manual

Width

• Minimum: 1.2 m (Urban roads)
• Preferred: 3 m to 5 m
• Expressways: 10 m or more

Height (Raised Median):

• The height of a raised median generally ranges from 150 mm to 300 mm, although in some cases it can go up to 450 mm depending on the design.

Slope & Drainage:

• Median is designed with a slope so that there is no water stagnation.

Plantation

• Plantation in the median is recommended, but it is important to ensure that the sight distance is not obstructed.

Real-Life Example

• The Delhi-Meerut Expressway serves as a good example of using wide depressed medians and crash barriers. This allows high-speed traffic to operate safely.

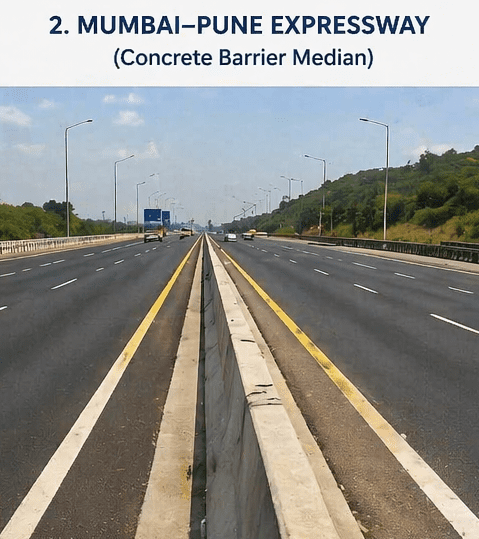

• The Mumbai-Pune Expressway also uses concrete barrier medians, which have virtually eliminated crossover accidents.
• Urban roads such as the Delhi Ring Road use raised medians with plantations, which improve safety as well as aesthetics.

Maintenance and Inspection

Median maintenance is as important as construction.

• Vegetation should be regularly trimmed to ensure clear visibility. Reflective markers and road studs must be maintained.
• Drainage systems must be kept clean to prevent water stagnation.
• Inspections must be conducted periodically on barrier medians so that workers can repair damage promptly.

Common Mistakes in Median Design

Many projects have median design flaws that impact safety.

• Providing medians that are too narrow is a common mistake, compromising safety.
• Improper plantation also creates problems, especially when trees block visibility.
• Ignoring drainage systems is also a major issue, leading to waterlogging.

Advanced Design Aspects of Highway Median

• Modern highway engineering uses several advanced techniques to make median design more effective. Basic separation is no longer sufficient; a smart and sustainable design approach is essential.
• Mediation lighting is an important aspect, especially on urban highways and expressways. Proper lighting improves night driving safety and ensures a clearly visible median. Many projects install median lighting poles to provide illumination to both carriageways.
• In addition, glare screens can also be part of median design. On high-speed roads, headlights from opposite traffic can disrupt driver visibility. To mitigate this, projects install shrub plantations or artificial glare screens in the median.
• Cable barrier systems also enhance safety on some advanced highways. These flexible barriers absorb impact energy and reduce accident severity. This technology is gradually gaining popularity in India as well.

Median Openings and Access Control

• Proper planning of median openings is crucial when designing medians. These openings serve U-turns, emergency vehicles, and local access.
• However, excessive openings can increase accident risk. Therefore, we should maintain controlled spacing as per IRC guidelines. On high-speed highways, we should minimize median openings and prefer grade-separated intersections.
• On urban roads, we provide median openings near signalized intersections to manage traffic smoothly. On expressways, designers generally adopt a fully access-controlled median design.

Practical Site Challenges

• Median construction on real construction sites presents several challenges. Land acquisition poses a major issue, especially in urban expansion projects. Limited space forces engineers to adopt narrow median designs.
• In addition, utility shifting such as water pipelines, power cables, and drainage lines also impacts median construction. Often, teams must adjust median alignment to accommodate these utilities.
• Maintenance challenges are also common. If regular maintenance is not performed, vegetation can become uncontrolled and create safety issues.

To get details about Structural article, click on given link.

How to Calculate HPC Concrete Quantity step by step

Toe Wall in Civil engineering

Future Trends in Median Design

• Median design in future highways is set to become even more advanced. Smart highways could integrate sensors and smart lighting systems into the median.
• Some countries are also experimenting with installing solar panels in the median to generate renewable energy.
• With the advent of autonomous vehicles, median design will also undergo changes, with greater emphasis on safety barriers and digital infrastructure.

Conclusion

In highway infrastructure design, the median is a crucial safety element; it not only separates traffic moving in opposite directions but also enhances the overall efficiency and safety of the road network. Proper median design on modern highways, expressways, and urban roads is considered essential for accident prevention, effective traffic management, and driver comfort.

Depending on specific road conditions and traffic requirements, various types of dividers—such as raised, depressed, flush, and barrier types—are employed. Their selection is based on factors like design speed, traffic volume, land availability, and safety needs. A well-designed separation system minimizes head-on collisions, reduces headlight glare, and ensures smoother traffic flow.

Adherence to Indian Roads Congress (IRC) and MoRTH guidelines regarding width, drainage, landscaping, and safety barriers significantly strengthens road user safety. Furthermore, regular maintenance—including vegetation control, upkeep of reflective markers, and periodic inspections—is just as critical as the initial construction.

Today, advanced technologies such as smart highways, cable barriers, glare screens, and intelligent lighting systems are making road design safer and more sustainable. With the future development of autonomous vehicles and digital transportation infrastructure, the role of road separation systems is set to become even more significant.

Therefore, a deep understanding of this subject is essential for civil engineers, highway designers, and construction professionals. Whether in the context of competitive examinations or actual site execution, proper design and maintenance play a vital role in ensuring road safety, traffic efficiency, and long-term infrastructure performance.

If you’re a civil engineer or work on highway projects, a proper understanding of median design is crucial. This is essential knowledge not only for exams but also for actual site execution.
