Introduction
When it comes to the topic of slab design for civil engineering, it is highly relevant, as it relates to the majority of residential, commercial, and infrastructure projects that are constructed worldwide.
The slab is the primary structural component of a structure; therefore, it provides support to the floors and roofs of a structure, carrying all of the loads from the roof down through to the foundations.
There are two primary types of slabs that are used in construction: one-way slabs and two-way slabs.
Many individuals are not familiar with the differences between one-way and two-way slabs and, therefore, do not understand which type of slab to use in which application type.
Additionally, many individuals, including site engineers, hold misconceptions regarding the illuminative nature, cost, and safety of each type of design.
In this blog post,
We will provide the most thorough comparison between one-way slabs and two-way slabs, including a description of the fundamentals of their use. the behaviors and design principles associated with each, and the various ways in which slabs should be designed for use.
What is a slab?
A slab is a horizontal, flat structural component that transfers load from beams and columns to the ground. It consists of reinforced cement concrete (RCC) along with steel reinforcement bar to resist tensile loads.
Slabs serve three main functions:
- Carrying live loads (i.e., logs, furniture, or vehicles).
- Supporting dead loads (i.e., the weight of the slab itself).
- Distributing loads safely to structural members.

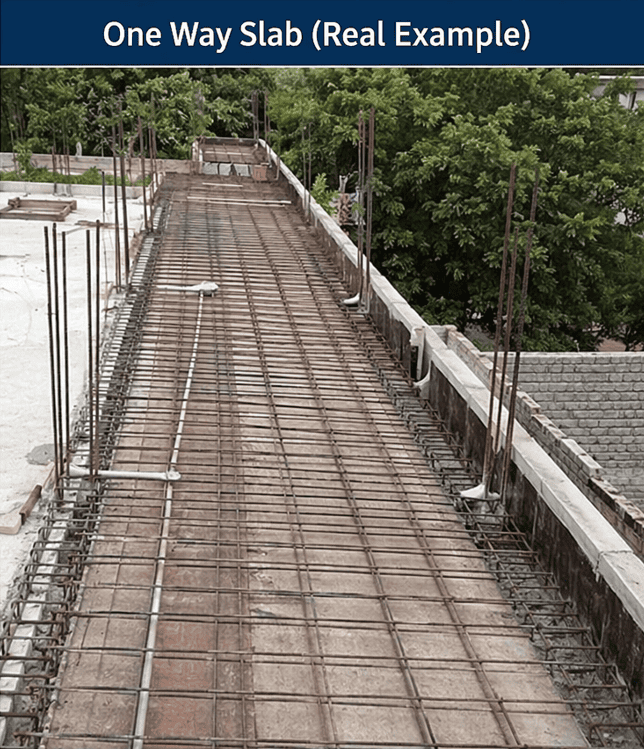

What is a one way slab?
A one-way slab is a slab in which the load is primarily transferred in one direction. This means that the slab bends in a single direction.
The simple rule for this is:
When the longer span / shorter span ratio of the slab is greater than 2, the slab behaves one-way.
Example:
If the slab size is 6m x 2.5m:
6 / 2.5 = 2.4 (>2)
Then it is a one-way slab.
Behavior
In this type of slab:
- Load transfers in the direction of the shorter span.
- Main reinforcement is provided along the shorter span.
- Distribution steel is provided along the longer span.
Practical Use
One-way slabs generally used in:
- Corridors
- Verandas
- Narrow rooms
- Footpaths and small bridges

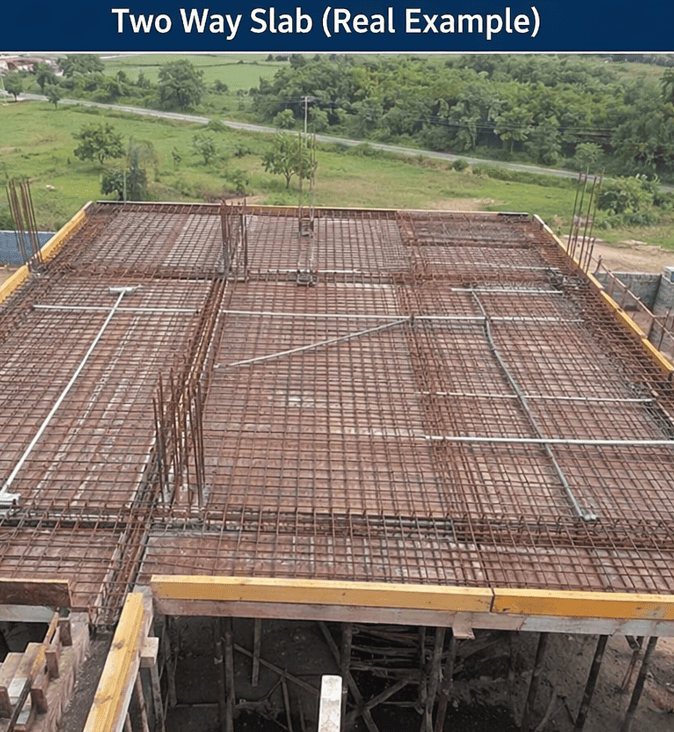

What is a two Way slab?
A two-way slab transfers the load in both directions. This means the slab bends in both directions.
The rule for this is:
When the longer span / shorter span ratio is less than or equal to 2, the slab behaves two-way.
Example
If the slab size is 4m x 3m:
4 / 3 = 1.33 (<2)
Then it is a two-way slab.
Behavior
In this type of slab:
- Load is distributed in both directions
- Reinforcement is provided in both directions
- Torsion reinforcement is also provided at the corners
Practical Use
Generally, two way slabs are used for:
- Square or nearly square rooms
- Residential buildings
- Office floors
- Shopping malls
Some articles regarding structure, if you want to read, then click on link below.
How to Calculate HPC Concrete Quantity step by step
Toe Wall in Civil engineering : A complete guide
what is Retaining Wall and Its Type: Complete Guide
Detailed Analysis of Structural Behavior
One Way Slab Behavior
To understand a one-way slab, you can imagine it as a beam. The slab bends across the shorter span. Longer spans have minimal effect.
This means:
- The slab carries the load in one direction.
- Steel also primarily requires placement in one direction.
- The design is relatively simple.
Two-Way Slab Behavior
A two-way slab behaves like a plate that resists bending in both directions. Therefore, its load distribution is complex.
Here:
- Load is evenly distributed
- Stress distribution is uniform
- Deflection is less compared to a one-way slab
Reinforcement Difference
One Way Slab Reinforcement
- Main bars with short spans
- Distribution bars with long spans
- Steel content is relatively low
Two-way slab reinforcement
- Main reinforcement in both directions
- Additional torsional steel at corners
- Steel content is high
Load Distribution Difference
In a one-way slab, the load is distributed only on two opposite sides of the beams, whereas in a two-way slab, the load is distributed on all four sides.
This has a direct impact on:
- Beam design
- Column load
- Foundation design
Thickness (Depth) Difference
Generally:
- One-way slabs have a slightly greater thickness because the load is applied in one direction.
- Two-way slabs may have a smaller thickness because the load is distributed.
- But the actual thickness depends on the design codes and loading conditions.
Cost Comparison
When comparing costs, consider the entire structural system, not just steel or concrete.
One-Way Slab
- Steel requires less
- Formwork is simple
- Design is easy
- Economical for narrow spans
Two-Way Slab
- Steel requires more
- Formwork is a little more complex
- Design is complex
- Economical for square rooms
Important Codes for Slab Design (India)
The most important codes for slab design in India are:
IS 456:2000 (Plain and Reinforced Concrete Code)
This code covers:
Example 1: Corridor
A building has a 2m wide and 8m long corridor.
Ratio = 8 / 2 = 4 (>2)
→ A one-way slab will be used.
Example 2: Room
A room is 4m x 4m in size.
Ratio = 4 / 4 = 1 (<2)
→ A two-way slab will be used.
One Way Slab vs Two Way Slab (Advantages & Disadvantages)
| Category | One Way Slab | Two Way Slab |
| Advantages | 1. The design is simple 2. Construction is fast 3. Best for narrow spaces 4. Cost-effective | 1. Loads are evenly distributed 2. Deflection is minimal 3. Structural stability is high 4. Suitable for large rooms |
| Disadvantages | 1. Deflection is high 2. Load distribution is limited 3. Not suitable for large rooms | 1. The design is complex 2. Steel consumption is high Construction is somewhat difficult |
One Way Slab vs Two Way Slab (Direct Comparison)
| Basis of Comparison | One Way Slab | Two Way Slab |
| Load Transfer | Load is transferred in one direction | Load is transferred in Both directions |
| Support Condition | Usually supported on 2 opposite sides | Supported on 4 opposite sides |
| Span Ratio (Ly/Lx) | Ly/Lx ≥ 2 | Ly/Lx < 2 |
| Bending Behavior | Bending occurs in one direction | Bending occurs in both direction |
| Main Reinforcement | Bars are provided in one direction | Main Reinforcements are provided in both directions |
| Distribution Steel | Distribution bars are provided in the other direction | Both directions have equal importance. |
| Deflection | More | Less |
| Steel Requirement | Require Less steel | Require More steel |
| Design Complexity | Has a simple design | Has a complex design |
| Construction Speed | Fast | Little slow construction process |
| Cost | Cost effective | Expensive |
| Suitable For | Narrow rooms, corridors, small spans | Large rooms, halls, heavy loads |
| Structural Stability | Low stability | High stability |
Important Tips for Site Engineers
If you’re working on-site, keep these points in mind:
- Always check the span ratio
- Place reinforcement according to the drawing
- Maintain the cover
- Ensure proper compaction and curing
- Don’t ignore torsion reinforcement (in two-way slabs)
Common Mistakes
Some common mistakes often occur on site that should be avoided:
- Selecting the wrong slab type
- Providing the wrong reinforcement direction
- Failing to maintain proper spacing
- Ignoring concrete curing
These mistakes affect both the life and safety of the structure.
conclusion
Both one-way slabs and two-way slabs are important components of RCC structures, but the situation determines their use.
If a narrow span or corridor needs to be designed, the best option is a one-way slab. However, if square or large rooms are being designed, better performance is offered by a two-way slab.
A good engineer is one who is chosen by the right slab for the right situation and has the design implemented properly.
Ultimately, it is not only on the ratio that slab selection depends; loading, architectural requirements, and cost considerations are equally important.
