introduction

In civil engineering, engineers use retaining walls as essential structures to maintain soil stability and prevent erosion in areas with varying ground elevations.

Retaining walls play a vital role in ensuring safety and structural integrity.

This post provides,

A simple and practical explanation of what a retaining wall is, its purpose, types, design concepts, applications, and common failures.

Click below link to get details about camber.

What is camber : Complete Guide for Beginners

what is retaining wall?

A retaining wall is a structure that resists lateral soil pressure. It holds the soil in place even when the ground elevation changes.

In simple terms, it prevents the soil from shifting or sinking.

Basic Principle of Retaining Wall

The basis of the design for a retaining wall is that the wall will be laterally loaded (e.g., pushed sideways) by a load (the backfill) which varies from location to location due to several different reasons.

Some of these reasons may include but are not limited to:

• The wall height.
• The properties of soil behind the wall.
• The moisture content in the backfill.
• Addition loads acting on the wall, such as wight of the other structure.

When designing a retaining wall, it is essential to provide for the following:

• Stability against sliding.
• Stability against overturning.
• Sufficient capacity for the wall to withstand the total weight of the soils behind it.

Types of Retaining Walls

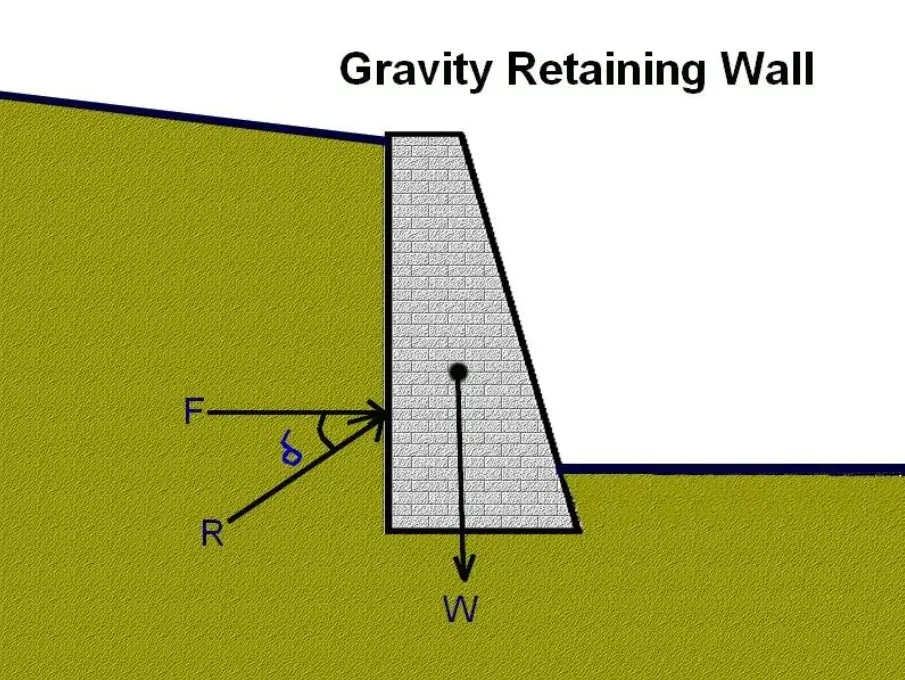

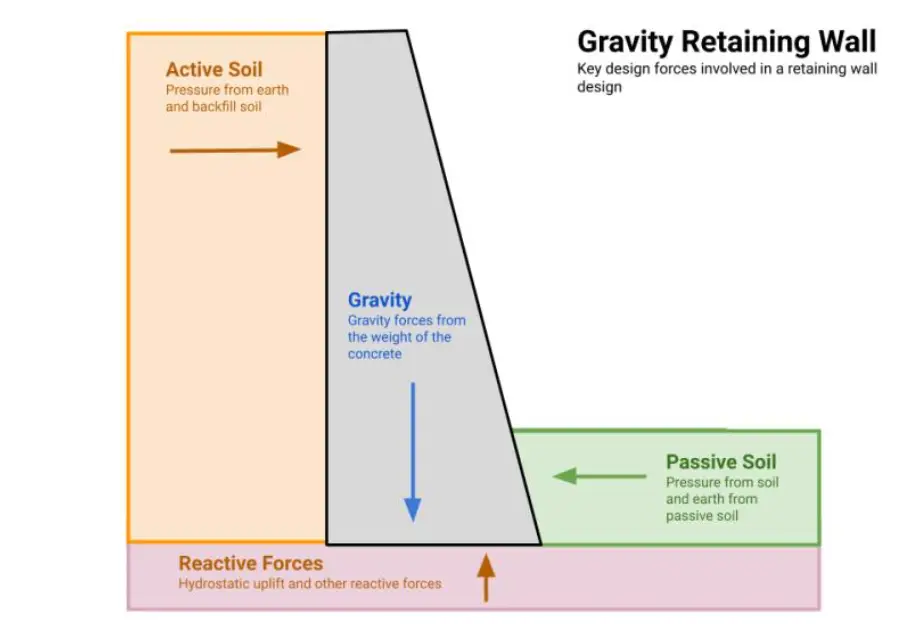

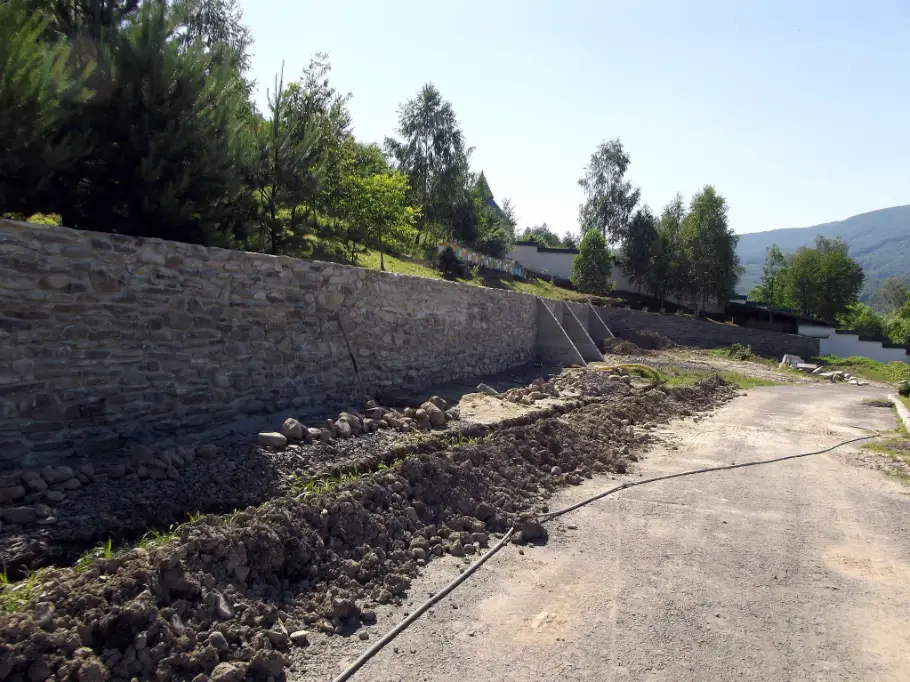

Gravity Retaining Wall

There are different Types of Retaining wall

A gravity retaining wall is a structure that holds back the soil behind it. It resists earth pressure due to its own self-weight.

When a wall has soil accumulating behind it, the soil exerts lateral earth pressure on the wall.

Gravity walls resist this pressure by:

• Their own Weight.
• Base Friction
• Preventing Overturn.
• Made of Concrete, Stone or Masonry
• Suitable for small heights

Advantages:

• Simple design and Construction.
• Suitable for low heights wall.
• mostly important that it is durable and robust.

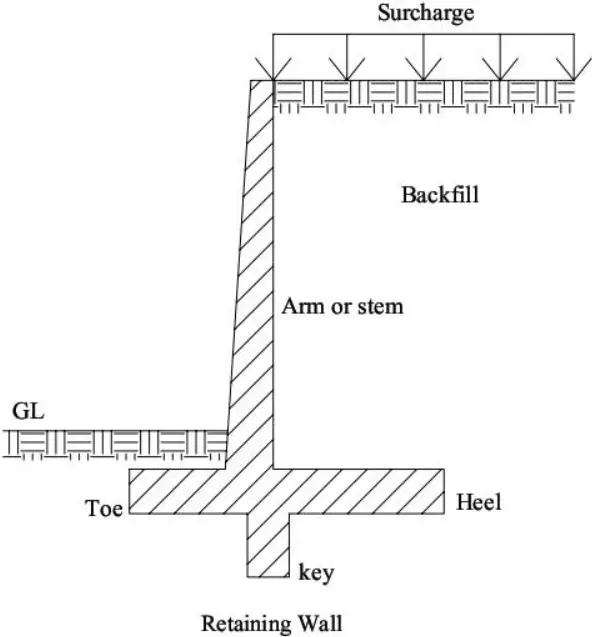

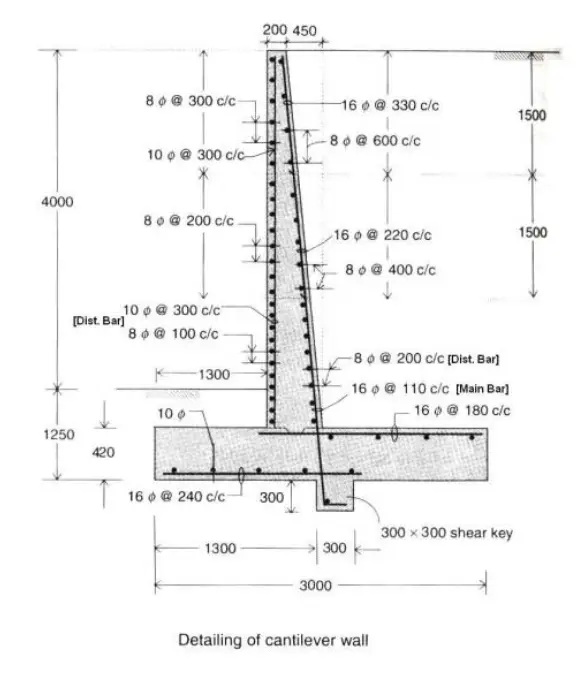

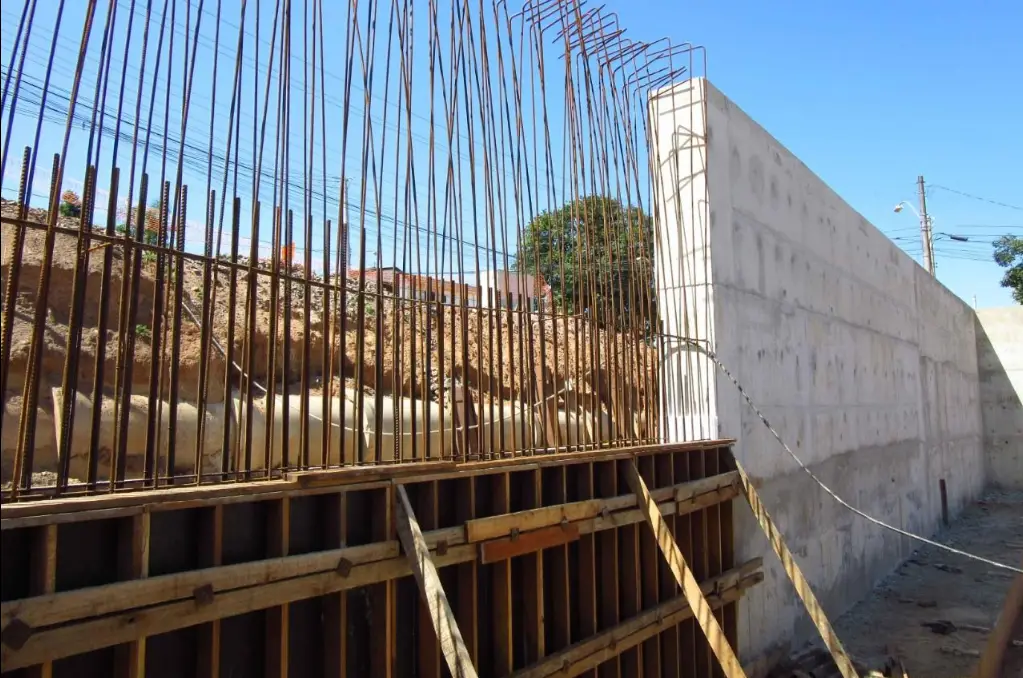

Cantilever Retaining Wall

A cantilever retaining wall is made of reinforced cement concrete (RCC) and uses a cantilever action to resist soil pressure.

• It is made of Reinforced concrete.
• Uses a base slab and vertical stem.

Advantages:

• Economical for medium heights
• Uses less material compared to gravity walls
• Widely used in construction

Click below link to get details about Super elevation.

what is Superelevation in road: complete guide

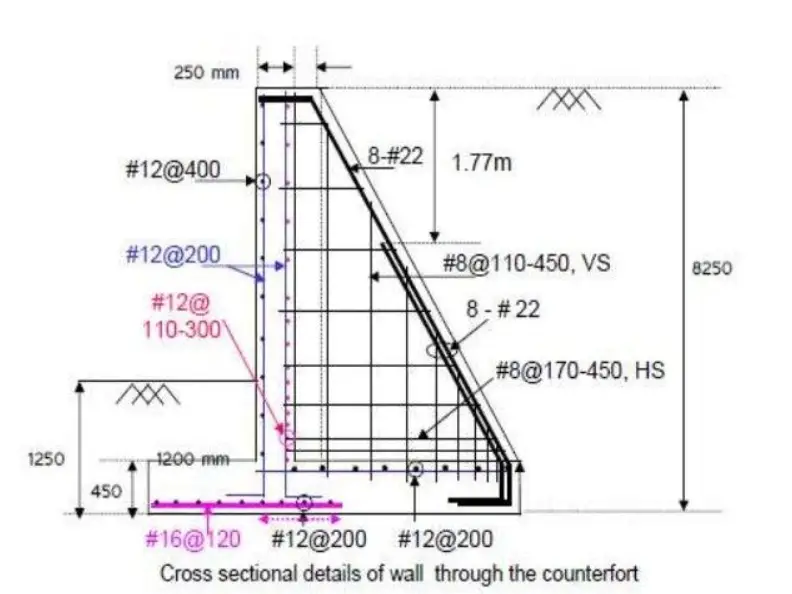

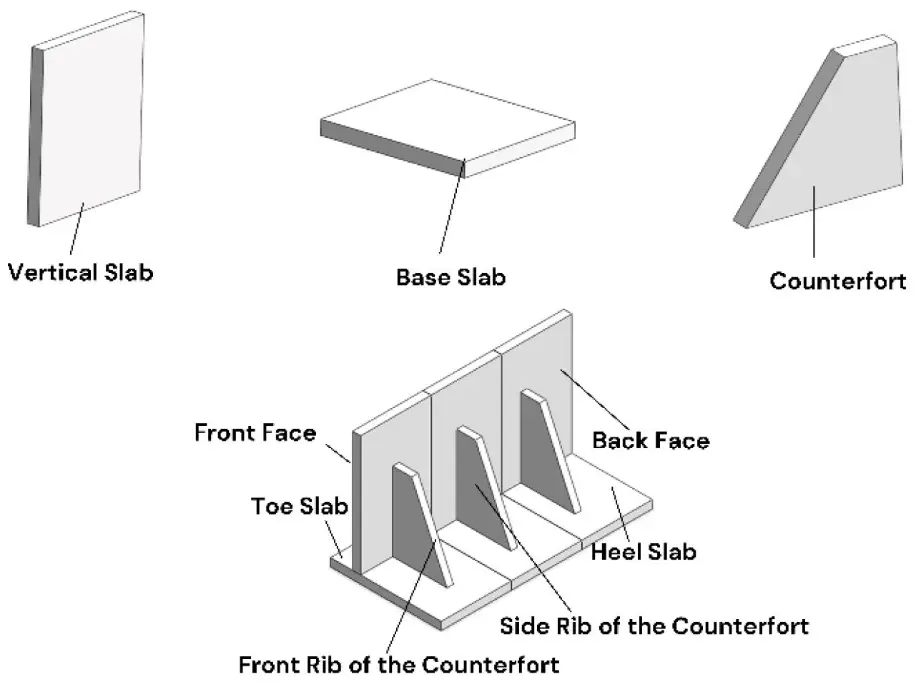

Counterfort Retaining Wall

A counterfort retaining wall is similar to a cantilever wall but includes triangular supports (counterforts) at regular intervals on the back side.

• Similar to cantilever but with triangular supports
• Reduces bending stress
• Common in waterfront structures

Advantages:

• Suitable for high retaining walls
• Reduces bending moments
• More economical for large heights

Click below link to get details about Reason of potholes in Road

potholes in road: causes, damages and methods of repairing

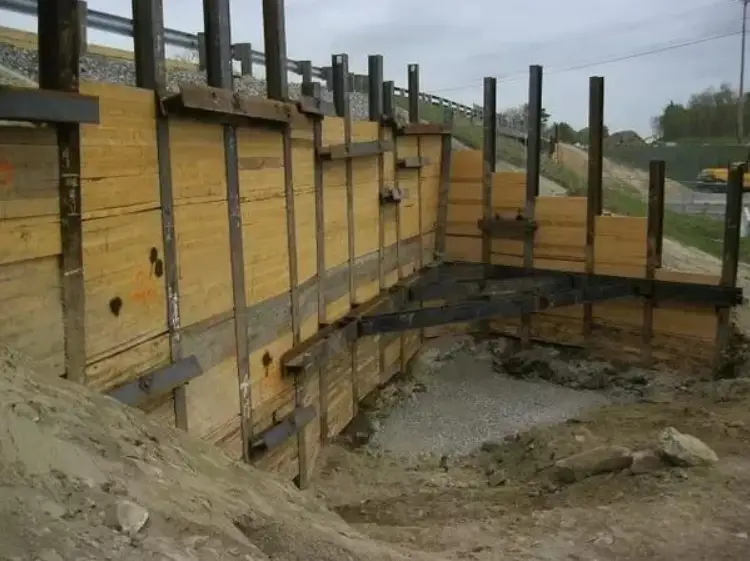

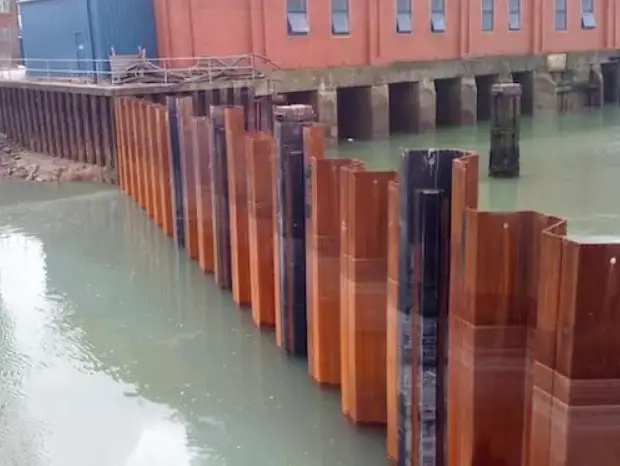

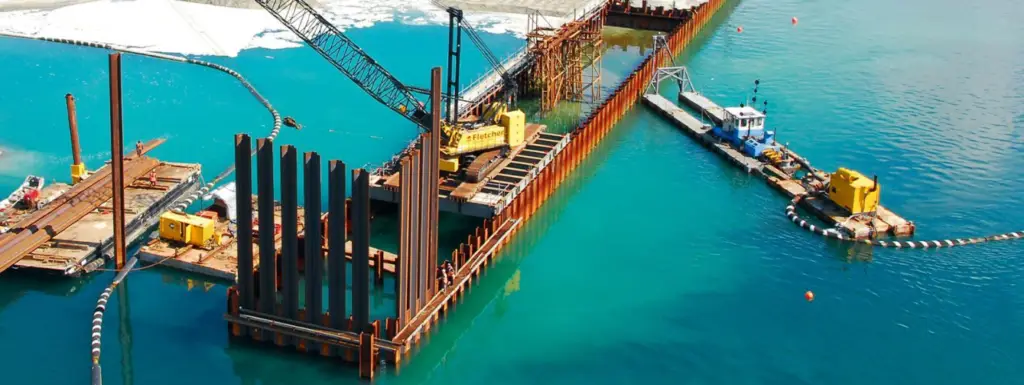

Sheet Pile Retaining Wall

Sheet pile walls are constructed by driving steel, timber, or concrete sheets into the ground.

• Made of steel, vinyl, or wood sheets
• Uses a base slab and vertical stem
• Economical for medium heights

Advantages:

• Ideal for soft soil and waterlogged areas
• Quick installation
• Requires less space

For better understanding you can follow some codes i.e.

• IS 456:2000
• IS 875 : 1987

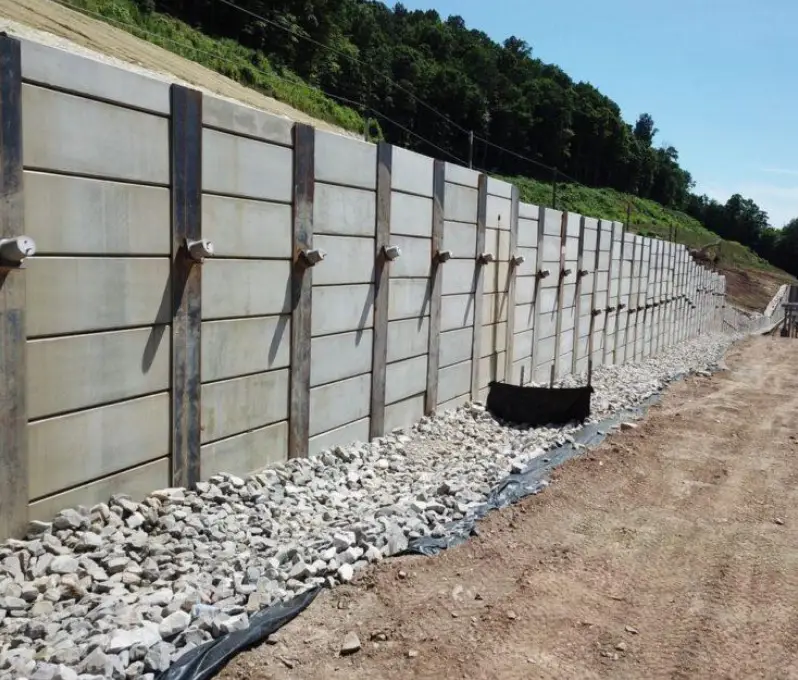

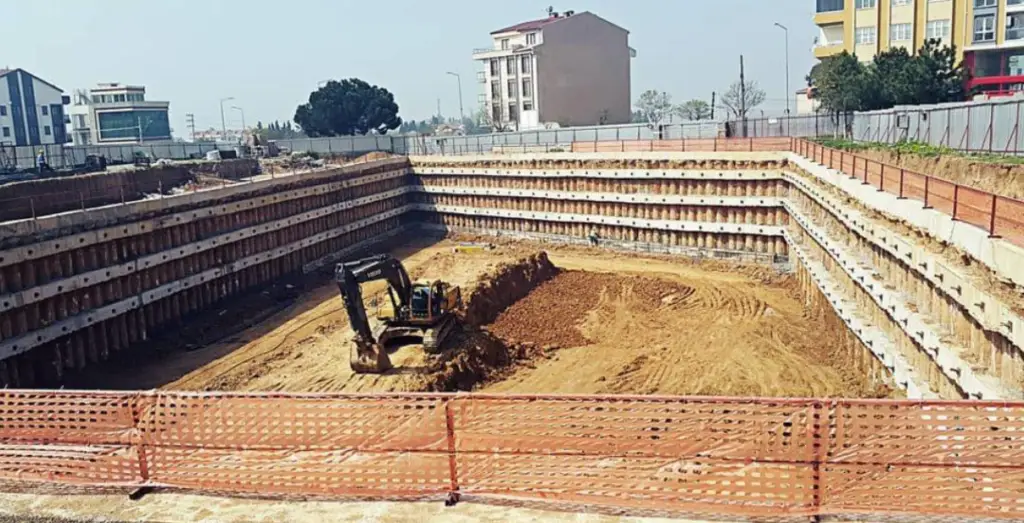

Anchored Retaining Wall

Anchored retaining walls use anchors or tiebacks embedded in the soil to provide additional stability.

• Supported by anchors or tiebacks
• Used where space is limited
• Provides extra strength

Advantages:

• Suitable for deep excavations
• High load-bearing capacity
• Can be used for tall structures

Applications of Retaining Walls

Civil engineers use retaining walls extensively on a variety of projects:

• Highway and hill side roads
• Bridge abutments/wing walls
• Basements
• Landscaping/gardening
• Rivers/canals

Design Principles of Retaining Walls

Designing a retaining wall requires careful analysis. The main principles include:

• Stability Against Sliding
• Stability Against Overturning
• Bearing Capacity
• Drainage System
• Factor of Safety

Earth Pressure Theory

The most important part of retaining wall design is earth pressure calculation. Soil exerts lateral pressure on the wall, which is classified into three categories:

• Active Earth Pressure develops when the wall moves slightly outward.
• Passive Earth Pressure occurs when the wall pushes inward on the soil.
• At-rest Pressure occurs when the wall is completely stationary.

Based on these three conditions, the design engineer decides how thick and strong the wall should be.

Importance of Drainage System

• In short, water is the biggest cause of retaining wall failure.
• When water accumulates behind the wall, hydrostatic pressure increases rapidly. This pressure can be even more dangerous than soil pressure.
• Therefore, on a practical site, engineers must ensure that:
• Engineers provide weep holes at the correct spacing.
• Engineers properly compact granular material.
• Engineers should not choke drain pipes.

Modern Materials and Innovation

• New technologies are increasingly being used in retaining walls.
• Geosynthetic reinforced soil walls (GRS walls) are lightweight and economical.
• Precast retaining wall panels allow for faster construction.
• Soil nailing techniques are also used where traditional wall construction is not possible.

Common Failures of Retaining Walls

If not designed properly then retaining walls may fail due to:

• Sliding Failure – is a lateral movement on the bottom of the wall
• Overturning Failure – is where the wall rotates around the bottom
• Bearing Failure – is where the soil under the wall cannot support the weight of the wall
• Water Pressure Failure – Poor drainage increases pressure behind the wall
• Structural Failure – Weak design or poor construction leads to cracks or collapse

In order to prevent these three types of failures, proper drainage and adequate wall design are critical.

Note: Water accumulation behind the wall increases pressure significantly. Therefore, drainage systems such as:

• Weep holes
• Drain pipes
• Granular backfill

Conclusion

Safely managing differences in ground levels is crucial in civil engineering projects. Retaining walls serve this purpose by stabilizing the soil and preventing it from shifting or collapsing. These structures not only enhance safety but also ensure the long-term stability of roads, bridges, basements, canals, and landscaping projects.

Since site conditions, soil properties, and load requirements vary from project to project, engineers must carefully select the appropriate type of wall. Gravity, Cantilever, Counterfort, Sheet Pile, and Anchored walls each have their own distinct characteristics and applications. Selecting the right type of wall helps optimize construction costs and improves the structure’s performance.

During the design phase, it is essential to analyze factors such as sliding, overturning, and bearing capacity. Equally important is the provision of a proper drainage system, as most failures result from water accumulation and the consequent rise in hydrostatic pressure. Measures such as weep holes, drain pipes, and granular backfill play a vital role in enhancing the wall’s durability and safety.

With advancements in modern construction technology, innovative solutions like geosynthetic reinforced walls, soil nailing, and precast systems are gaining popularity. These techniques offer greater speed, cost-effectiveness, and efficiency in construction. Ultimately, through proper design, quality construction, and regular maintenance, safe, durable, and long-lasting structures can be created for projects involving soil retention and slope stability.
