introduction:

Concrete plays a vital role for construction in civil engineering.

Its performance depends not only on strength but also on workability.

Workability defines, how easily concrete can be mixed, transported, placed, and compacted without segregation.

One of the most simplest commonly used methods to measure workability is Slump test.

This article will discuss many aspects of the slump test including,

The procedures to perform the test, the standard values of slump test and the applications of the slump test on construction sites.

Aim of Slump test

The main Objectives of slump test are:

• To determine the consistency of fresh concrete.
• To check the uniformity of concrete mix.
• For confirming, the concrete is suitable for placing and compaction.
• To maintain quality of concrete at site

Apparatus Required

The following apparatus used in the slump test:

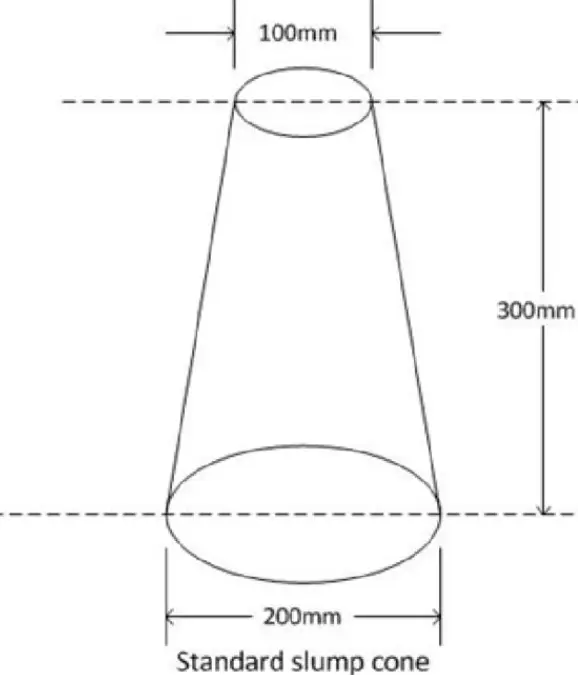

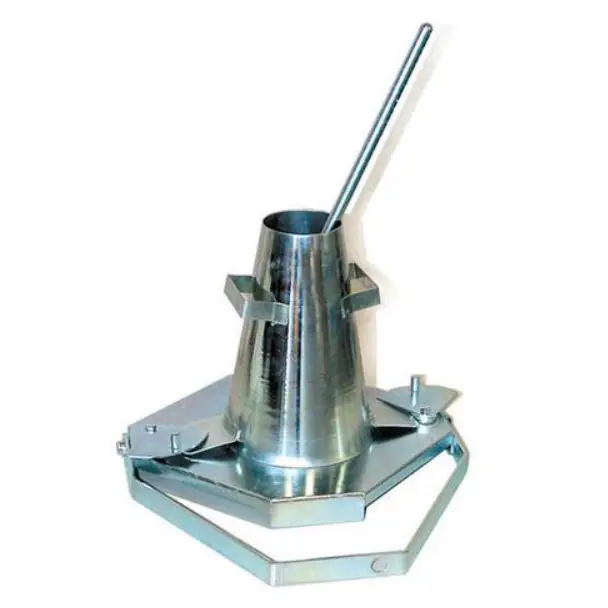

• Slump cone (Height = 300(+/- 2) mm, Bottom diameter = 200(+/- 2) mm, Top diameter = 100(+/- 2) mm)
• Base plate.
• Tamping Rod (16(+/- 1) mm diameter, 600(+/- 5) mm length)
• Measuring scale

All details about Retaining wall and Toe wall, you can find here.

what is Retaining Wall and Its Type: Complete Guide

Toe Wall in Civil engineering : A complete guide

Standard Reference

In India, the slump test is conducted as per guidelines given by,

IS 1199 Part 2:2018

Slump Test Procedure (Step-by-Step)

Now let’s understand the actual site procedure, which is very important for both exams and practical work.

Step 1: Preparation

• At first clean the slump cone and base plate by water.
• Place the cone on a level and non-absorbent surface.
• Hold it firmly to prevent movement

Step 2: Filling the cone

• Fill the slump cone by three equal layer
• All layers are calculated by one third of the cone.

Step 3: Tamping

• Each layer is tamped twenty five using a tamping rod.
• Ensure uniform compaction.
• Confirm that every layers are interconnected.

Step 4: Leveling

• Remove excess concrete from the top.
• Now level the top.

Step 5: Lifting the Cone

• Carefully lift the cone vertically upward in 5–10 seconds

Step 6: Measurement

• Measure the difference between original height (300 mm) and the slumped concrete height
• This difference is called Slump Value (in mm)

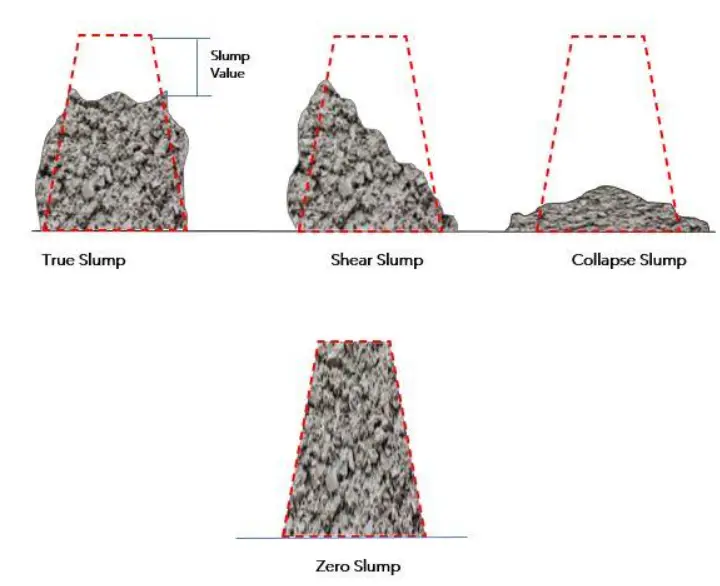

Types of Slump

Understanding slump types is very important because it tells you about concrete behavior.

True Slump :

• Concrete subsides uniformly
• Indicates good workability
• Best type of slump

Shear Slump :

• One side of concrete slides
• Indicates lack of cohesion
• Mix needs correction

Collapse Slump :

• Concrete completely collapses
• Indicates very high water content
• Not suitable for structural work

Safety and Precautions in Slump Test

• When performing a slump test, safety and proper precautions are as important as following the procedure. Often, workers perform testing hastily on site, which not only results in inaccurate results but also increases the risk of accidents.
• First, ensure that the base plate is placed on a stable and level surface. If the surface is uneven, the slump value will not be accurate.
• It is important to wear gloves and safety shoes when handling concrete, as wet concrete can be harmful to the skin.
• When lifting the slump cone, lift it slowly and vertically. If you lift the cone with a jerk, the concrete will be disturbed, preventing an accurate slump measurement.
• Also, apply uniform force when you use the tamping rod to ensure each layer is properly compacted.
• Finally, position the scale correctly when measuring and take the reading.
• Only by following these precautions can we obtain an accurate and reliable slump test result.

Slump Value and Its Meaning

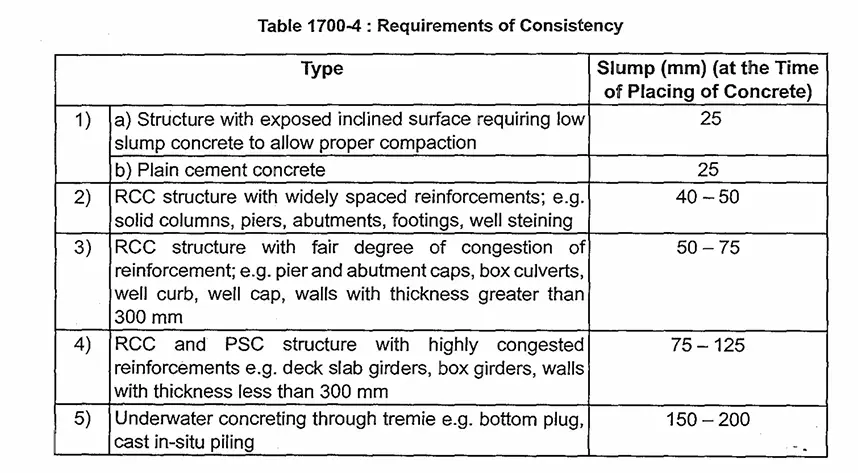

As per above image collected from MoRTH 5th revision and Section 1700 table no. 4, required slump for every item are given

For each type of Concrete like PCC, RCC, PSC etc., there are different slump measurement given in above image collected from MoRTH 5th Revision.

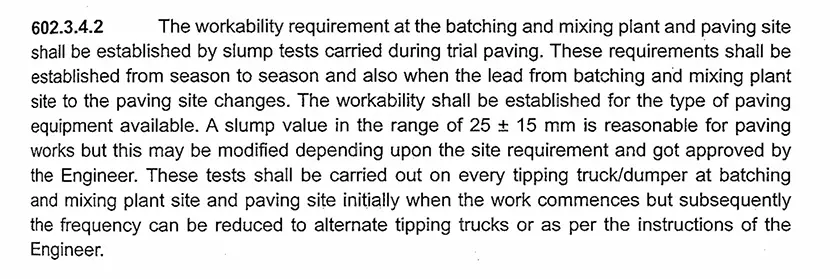

In case of PQC the slump for M-40 grade concrete must be 25 (+/-15) mm as per MoRTH 5th revision section 600 and clause 602.3.4.2

Factors Affecting Slump

• Water-cement ratio.
• Aggregate size and shape.
• Temperature.
• Mixing time.
• Admixture content.

Note: More water = High slump, More Flakiness of aggregate = Low slump

Relation between Slump Test and Workability

Workability is a broad term that includes many factors such as flowability, compactability, and finishability. Slump testing provides an indirect indication of all of these.

Low slump means low workability, which may be acceptable for mass concrete or road work. However, RCC structures such as beams, slabs, and columns require medium to high workability.

High slump is suitable for concrete pumping, but controlling it is crucial.

Thus, slump testing helps us decide which concrete will be best for which structure.

Slump Test vs Other Workability Tests

The slump test is the most popular test, but it is not sufficient in some cases.

• For very dry concrete, the slump test is ineffective; the engineers uses the Compaction Factor Test.
• For self-compacting concrete (SCC), the engineer uses the Slump Flow Test.
• The Vee-Bee Consistometer Test is also used for low-workability concrete.
• Therefore, the engineer must choose the appropriate test based on the situation.

Effect of Admixtures on Slump

• The use of admixtures has become very common in construction today.
• Using a superplasticizer can increase slump without increasing water.
• Retarder admixture increases the setting time of concrete, making long-distance transportation possible.
• Accelerators reduce setting time, but have an indirect effect on slump.
• Therefore, both workability and strength can be optimized by using admixtures correctly.

Effect of Temperature on Slump

• Temperature also significantly affects slump value.
• In high temperatures, water evaporates faster, reducing slump.
• In low temperatures, the hydration process is slower, causing slump to persist for a comparatively longer period of time.
• Therefore, extra precautions are necessary for hot weather concreting, such as using chilled water or admixtures.

Conclusion

Concrete quality plays a major role in the strength, durability, and long-term performance of any structure. For this reason, engineers and construction professionals must ensure that fresh concrete possesses the required workability before it is placed and compacted. Among the various methods available for evaluating workability, the slump test is considered one of the simplest, quickest, and most practical procedures used on construction sites. It provides an immediate indication of the consistency of fresh concrete and helps engineers determine whether the concrete mix is ​​suitable for the intended application.

Regular testing helps maintain uniformity in concrete production and ensures that variations in water content, aggregate properties, mixing time, or admixture dosage can be identified at an early stage. By conducting this test, site engineers can take corrective actions before the concrete is placed, thereby reducing the risk of honeycombing, segregation, poor compaction, and other quality-related issues. As a result, the overall performance and durability of the structure can be significantly improved.

Understanding the correct testing procedure, interpretation of results, and different types of concrete behavior is essential for students, site supervisors, quality control engineers, and construction professionals. Proper execution of the test also requires attention to safety measures, accurate measurement techniques, and adherence to relevant standards such as IS 1199 Part 2:2018.

In modern construction projects, quality control has become more important than ever. A small deviation in concrete workability can affect the ease of placement and ultimately influence structural performance. Therefore, routine workability testing should always be an integral part of construction practices. By following standard procedures and evaluating results correctly, engineers can ensure better quality control, improved construction efficiency, and the successful completion of durable and reliable concrete structures.
